N2 PSA Nitrogen Gas Plant Liquid Nitrogen Generator 3Nm3/H-50Nm3/H

Product Categories
Henan Junfang Machinery Equipment Co., Ltd
Contact Now

N2 PSA Nitrogen Gas Plant Liquid Nitrogen Generator 3Nm3/H-50Nm3/H

Brand Name : JUNFANG

Certification : CE/ISO

Place of Origin : Henan, China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100/month

Delivery Time : 7-20 work days

Power(w) : Customized

Capacity : 3--50Nm3/h

Product name : nitrogen generator machine

Technology : pressure swing adsorption(PSA)

Color : White/customized

Advantage : Low Maintenance Cost and Energy Saving

Contact Now

Industrial PSA Nitrogen Generator Chemical Nitrogen Generator Gas Equipment

Working principle: According to the principle of variable pressure adsorption, high quality carbon molecular sieve is used as adsorbent to produce nitrogen from air under a certain pressure. After purified and dried compressed air, it is adsorbed under pressure and desorbed under reduced pressure in the adsorber. Due to the aerodynamic effect, the diffusion rate of oxygen in the micro-pores of the carbon molecular sieve is much larger than that of nitrogen, and oxygen is preferentially adsorbed by the carbon molecular sieve, while nitrogen is enriched in the gas phase to form the finished nitrogen gas. Then by reducing the pressure to atmospheric pressure, the adsorbent desorbs the adsorbed oxygen and other impurities, is to achieve regeneration.

Technical parameters of nitrogen generator
carbon
molecular
sieve
capacity(KG)		 purity/nitrogen capacity(Nm³/h)
Low purity		 purity/nitrogen capacity(Nm3/h)
high purity
95% 96% 97% 98% 99% 99.5% 99.9% 99.95% 99.99% 99.995% 99.999%
120 55 50 45 40 30 30 20 20 15 13 10
150 75 70 65 50 45 35 25 25 20 15 13
180 80 80 70 60 50 40 30 30 22 20 15
210 105 100 90 80 65 50 35 35 25 25 18
240 115 110 100 90 70 60 40 40 30 27 20
276 130 120 110 100 80 70 45 45 35 30 23
300 150 140 130 110 90 80 50 50 40 35 25
336 170 160 140 120 100 85 60 60 45 40 28
360 180 170 150 130 110 90 65 65 48 42 30
420 200 190 170 150 120 100 70 70 50 45 35

N2 PSA Nitrogen Gas Plant Liquid Nitrogen Generator 3Nm3/H-50Nm3/H


Product Tags:

N2 PSA Nitrogen Gas Plant



3Nm3/H Liquid Nitrogen Generator



50Nm3/H Liquid Nitrogen Generator


Wholesale N2 PSA Nitrogen Gas Plant Liquid Nitrogen Generator 3Nm3/H-50Nm3/H from china suppliers

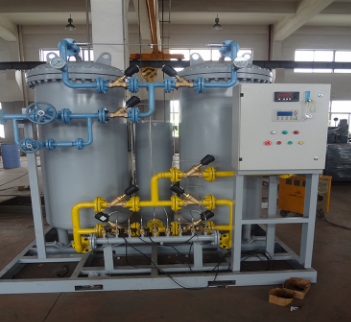

N2 PSA Nitrogen Gas Plant Liquid Nitrogen Generator 3Nm3/H-50Nm3/H Images
